5 designers with the title of engineer or above, 2 full-time material engineers, 6 technicians, all of whom have worked in well-known domestic and foreign companies;
Yancheng has a production base with a total investment of 120 million yuan. The plant covers an area of 6,000 square meters, of which the total investment in equipment is about 35 million yuan.
Choose aerospace materials, low wear; excellent and reasonable design of internal structure and overall machine; precise processing equipment, standardized production process workshop, quality assurance.
Rucca promises to respond within 2 hours when receiving the buyer's report for repairs, provide a solution within 24 hours, and offer free damaged parts in warranty period.
Rucca is a famous producer and designer of wet grinding and dispersing equipment in China,product list:Inline Dispersing System,Full Series of Bead Mills,Basket Mill,Mixing machine such as High Speed Disperser,Dual Shafts Mixers,Triple Shafts Dissolver,High Shearing Homogenizer,Grinding Beads,and Whole Production Line.

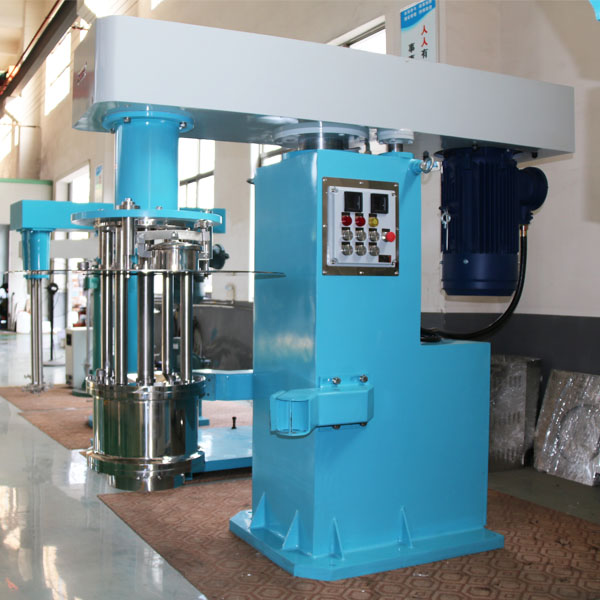

Paint basket mill is a wet mill with unique self-priming impeller design, stable feeding, no anti bead, no blocked bead and no broken bead. Special small screen design, smaller grinding beads can be used to obtain finer particle size and narrow particle size distribution.
1. The two independently driven stirring paddles provide a thorough and stable material circulation to ensure uniform dispersion of materials and a wide range of viscosity;
2. The pump suction of the stirring paddle and the centrifugal force of the dispersion basket prevent the grinding medium from flowing backwards;
3. The stirring blade is installed on the dispersing independent shaft sleeve, and the optimal speed can be set, or it can be customized according to the requirements of the material production process. During the grinding period or at any time, the grinding condition of the material is checked by sampling, so the adjustment can be completed without stopping the machine. Or add other formula ingredients;
4. Double-action grinding can control the temperature of the product well by cooling or heating according to different formulas;
5. Hydraulic lifting and pneumatic support devices are convenient for quick color change and cleaning;
6. Application field: Integrated production of medium and low viscosity and mass production.
The blue grinder is especially suitable for materials that need to be ground and dispersed, and is widely used in ink, color paste, dyes, pigments, coatings and other industries.
The working principle of the basket grinder is that the self-priming impeller sucks the material at high speed → the extremely fine grinding in the grinding basket → the high-speed rotation of the dispersing disc produces the effect of dispersion, mixing and circulation → thus forming a high-efficiency cycle of material suction, grinding and discharge, which solves the problem. It solves the problem of material flipping, avoids the dead angle of circulation, and can obtain excellent grinding effect in a short time.
To be briefly:basket mill is a kind of batch bead mill,the product was ground circulated in one container,easy to operation,and the grinding chamber is easy to clean,very suitable for customer who need to change color frequently.Horizontal bead mill is continuous mills,the product pass through the grinding chamber to another container,all slurry will be ground without by-pass,and for some model,the final particle size can reach to smaller size(nanometer).
