What is a high-speed shear emulsifier

What is a high-speed shear emulsifier

The high-speed shearing emulsifier means that the materials are continuously rotated and stirred in the homogenizing pot through the stirring frame in the pot, so that new interfaces are continuously generated, and the materials are sheared, compressed, and folded, so that they are stirred and mixed and flow down to the bottom of the pot. At the homogenizer, through the strong shearing, dispersion, impact, turbulence and other processes generated between the high-speed rotating rotor and the stator, the material is cut in the shearing seam, and quickly broken into particles of 200nm ~ 2μm. Material micronization, emulsification, mixing, homogenization, dispersion, etc. are completed in a short time.

Get A Quote

Professional Team

5 designers with the title of engineer or above, 2 full-time material engineers, 6 technicians, all of whom have worked in well-known domestic and foreign companies;

Strong strength

Yancheng has a production base with a total investment of 120 million yuan. The plant covers an area of 6,000 square meters, of which the total investment in equipment is about 35 million yuan.

Quality Assurance

Choose aerospace materials, low wear; excellent and reasonable design of internal structure and overall machine; precise processing equipment, standardized production process workshop, quality assurance.

After-sales guarantee

Rucca promises to respond within 2 hours when receiving the buyer's report for repairs, provide a solution within 24 hours, and offer free damaged parts in warranty period.

about us

We Have The Best Solutions for Your Business

Rucca is a famous producer and designer of wet grinding and dispersing equipment in China,product list:Inline Dispersing System,Full Series of Bead Mills,Basket Mill,Mixing machine such as High Speed Disperser,Dual Shafts Mixers,Triple Shafts Dissolver,High Shearing Homogenizer,Grinding Beads,and Whole Production Line.



Learn More

High Shearing Disperser Emulsifier

The homogenizer on the main shaft, which is operated by an electric motor, produces a high centrifugal speed of the material. Through the strong cutting, impact and turbulence from the high shear wheel and cutting box, the material becomes particles of 200nm-2um at the cutting gap and disperses in a short time.

Pigment High Shearing Emulsifier

High-speed latex paint emulsion mixing and dispersing machine is widely used for mixing, dispersing and dissolving liquids and solids such as paints, pigments, inks, pesticides, dyes, resins, food, etc.

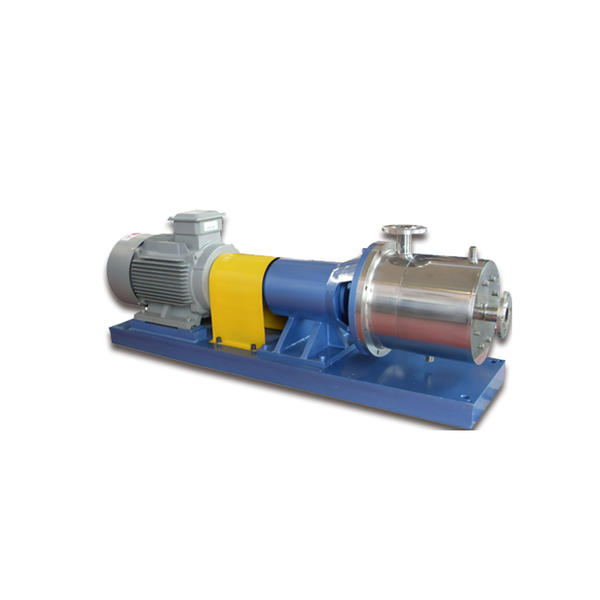

Coating High Shearing Emulsifier

Single-stage high shear emulsification pump is a homogeneous emulsification equipment used for continuous production or cyclic processing of fine materials. The motor drives the rotor to run at high speed, and the particle size of liquid-liquid and solid-liquid materials is narrowed by the action of mechanical external force, so that one-phase material is evenly distributed into another phase or multi-phase, so as to achieve uniform refining and dispersion and emulsification, thus forming a stable lotion state. Suitable for cosmetics, lotions, bath shampoos, ointments, toothpastes, sauces, beverage lotions, liquid fragrances, oil mixtures, pharmaceuticals, coatings and adhesives.

Shearing Emulsifier Mixer

The rotors and stators of the high shear emulsifier mixer liquid soap making machine have precision, ensuring that the material is processed with a shear effect every few hundred times. Several interchangeable stator heads cover a wide range of applications including cosmic emulsions such as mortar and other processes that require mixing, homogenizing, crushing, suspending and dissolving.

Frequently Asked Question

Do you have any question?

The essence of the emulsification process is the process of breaking and refining large water aggregates into micro-sized micelles. The combined action of the emulsifier and the emulsifier completes the emulsification process. Emulsification methods currently used include mechanical, chemical, electromagnetic and other methods. High shear, ultrasonic, high pressure homogenization, jet flow, vortex mixing and stirring are mechanical methods; the emulsifier is actually a chemical method; the magnetization treatment is an electromagnetic method.

The high shear emulsifier has the following basic functions: 1. shearing (1) The material is instantly sheared by the powerful filling and sealing machine through the outer diameter of the rotor and the inner diameter of the stator. (2) The complex and intense fluid motion drives the particles to collide with each other, and the particles collide with the rotating stator, thereby forming a hydraulic shear effect that cannot be underestimated. 2. Friction (rubbing) action The material is subjected to strong grinding and tearing between the outer diameter of the rotor and the inner diameter of the stator. 3. pump mixing The centrifugal movement of the fluid is driven by the rotor cutting groove and the rotation of the blades to produce a pumping effect. The agitation of the rotor slot, the stator slot and the centrifugal blade produces a mixing effect.
